L3-lite Managed Gigabit/10G PoE+ Switch

BDCOM S2900 PoE series with 24 & 48 PoE+ ports with 10G uplink built in first-rate pizza-box hardware and loaded with well-featured L3 software

S2900-24P4X

S2900-48P6X

Highlight Features

Innovative Virtual Cluster Switching Technique

Industrial Ethernet Ring with Zero Delay and Zero Packet Loss

Telecom-Level Ethernet Switch

consult

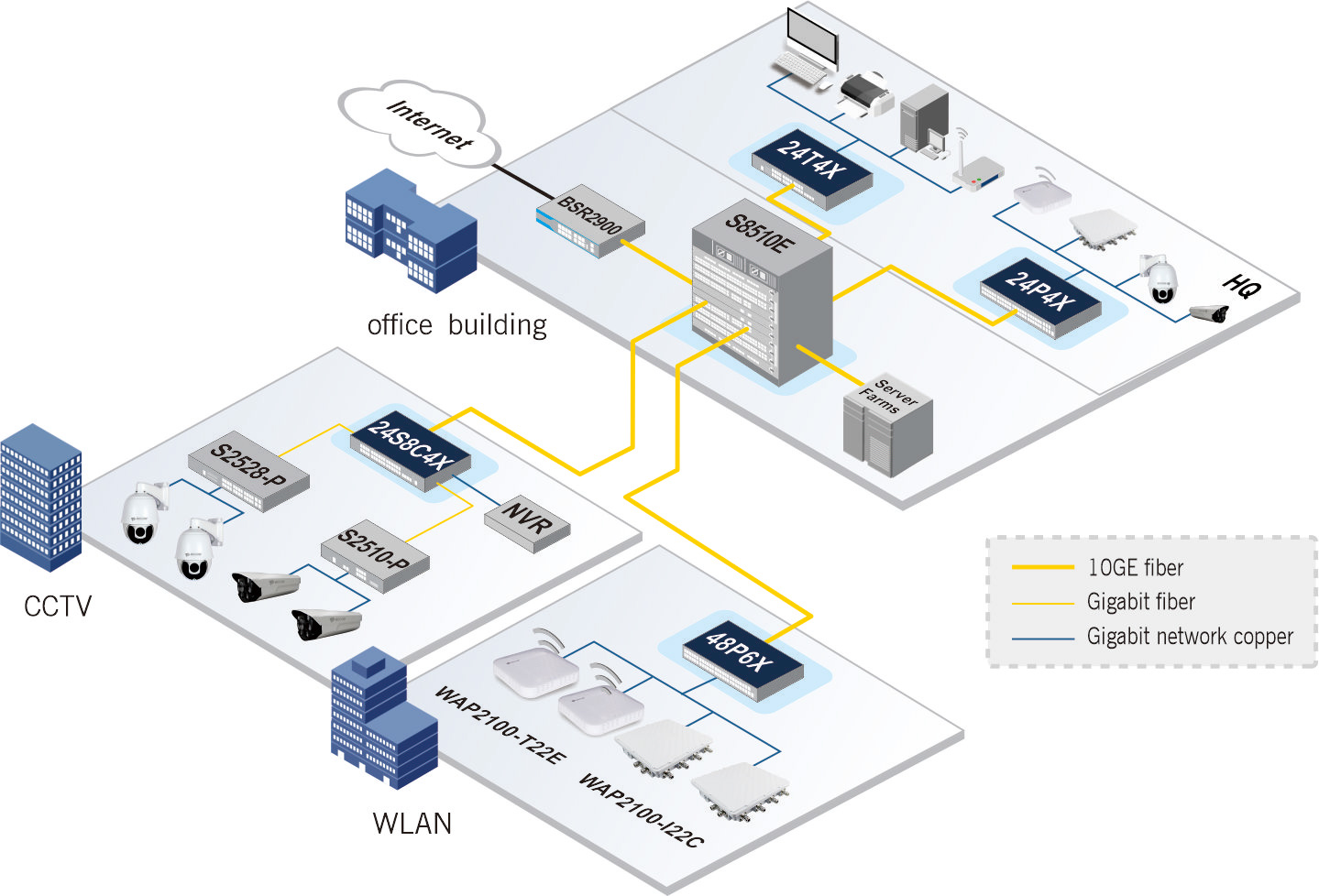

Typical Application

Technical Parameter

S2900-24P4X S2900-48P6X

Interface	24 GE POE 4 10GE/GE SFP+
Console(RJ45)	1
Backplane(Gbps)	128
Forwarding rate (Mpps with 64 bytes)	96
Chassis
Dimensions (WxDxH)(mm)	440x210x44
Weight(KG)(empty)	3
Package
Dimensions (WxDxH)(mm)	555x295x88
Weight(KG)	4.1
Power consumption
no-load	< 25W
full-load	<408W
Power supply (AC: 100V-240V, DC: 36V-72V)	410W
POE power budget	370W
Total output BTU (1000BTU/H=293W)	1392.49
Fan number	2
Noise@25°C(dBA)	37.5
MTBF(H)	> 200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	256
MAC	16K
Buffer size(MB)	1.5
Interface vlan	64
Routing table	512
Jumbo frame	9K

Interface	48 GE TX 6 10GE/GE SFP+
Console(RJ45)	1
Backplane(Gbps)	216
Forwarding rate (Mpps with 64 bytes)	162
Chassis
Dimensions (WxDxH)(mm)	440×300×44
Weight(KG)(empty)	5.2
Package
Dimensions (WxDxH)(mm)	576x448x94
Weight(KG)	6.1
Power consumption
no-load	< 25W
full-load	<48W(without POE)
Power supply (AC: 100V-240V, DC: 36V-72V)	450W AC and 800W DC
POE power budget	370W AC or 740W DC
Total output BTU (1000BTU/H=293W)	1535.84@AC, 2730.38@DC
Fan number	2
Noise@25°C(dBA)	45
MTBF(H)	> 200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	512
MAC	16K
Buffer size(MB)	1.5
Interface vlan	64
Routing table	512
Jumbo frame	9K

Features

VLAN: 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN

Spanning Tree

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast

IGMP v1/v2/v3, IGMP Snooping,

IGMP Fast Leave, MVR, IGMP filter

IP

Static route, RIP, OSPF

IPv4/v6 dual stack

IPv6

ICMPv6, DHCPv6, ACLv6 and Ipv6 Telnet

IPv6 neighbor discovery, Path MTU discovery

MLD V1, MLD snooping

IPv6 Static Routing, RIPng, OSPFv3

Manual tunnel, ISATAP tunnel,6 to 4 tunnel

Certification: CE, FCC, ROHS

QoS: CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky DAI & IP source guard, PPPoE+,

IEEE 802.1x, AAA, Radius and BDTacacs+

L2/L3/L4 ACL flow identification and filtration Anti-attack from DDo S, TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

DHCP

DHCP server/relay/client

DHCP snooping/option82

Reliability

Static/LACP link aggregation, Interface backup

EAPS and ERPS

ISSU uninterrupted system u pgrade

BVSS, ups to 16-units per stack

VRRP

UDLD

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP

ZTP

SPAN, RSPAN

Dying gasp*

Environment

Operating temperature/humidity: 0 -50℃ ,10%-90% non-condensing

Storage temperature/humidity: -20 -70℃ , 5%-95% non-condensing

Accessories: Power cord, rackmount kits, console cable

Ordering Information

S2900 L3-lite series switch
S2900-24P4X	Ethernet Layer-3 lite POE switch with 24 GE ports and 4 10GE ports (1 console port, 24 GE POE TX ports, 4 10GE/GE SFP ports; standard AC220V power supply, 370W POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
S2900-48P6X	Ethernet Layer-3 lite POE switch with 48 GE ports and 6 10GE/GE ports (1 console port, 48 GE POE TX ports, 6 10GE/GE SFP+ ports; standard AC220V power supply, 370W AC POE power, 740W DC POE power, the cooling fan; 1U; standard 19-inch rack-mounted installation)
